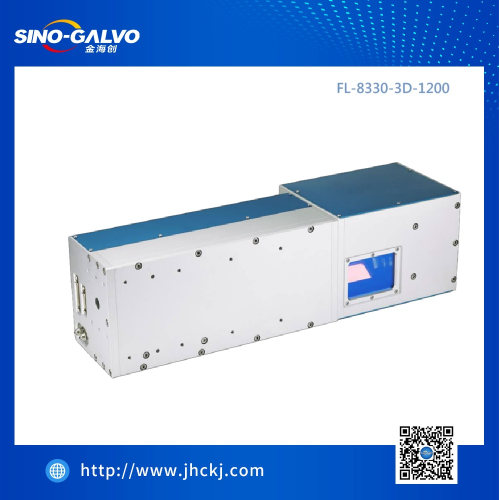

FL8330-3D-1200 Dynamic Focusing Scanning System

■Adopted advanced optical design scheme, it is characterized by small light loss, small volume,
high positioning accuracy, fast marking speed and strong anti-interference ability, etc. It is
suitable for laser fine processing of various large surface, complex surface and deep carving.
■ The water-cooled structure is adopted to effectively control the operating temperature of the
galvanometer.
■ The galvanometer system has a faster response time and can meet the precision filling of more
than 1500mm/s.
■ The maximum engraving field supports up to 1200x1200mm, meets large scan field
engraving requirements.
■ Precisely control the focal length position of laser marking machine, automatically adjust
Z-axis for 3D deep marking process, keep the spot size to minimum, ensure the uniform graphic
effect after marking on the object.
■ Adopted MM3D/Marking Mate software system to support various file formats, vector, bitmap
and text bar code import, which is easy to learn and operate.
■ Built-in concave and convex circular tube, concave and convex sphere, slope, cone, polygon
and other basic models, the operator can easily and rapidly set the marking.
■ 3D models can be imported; 2D graphics can be directly cladded or projected on built-in curve
surface.
■ The whole system adopted the optimization designing of electromagnetic compatibility, with
high signal-to-noise ratio and strong anti-interference ability.

---
