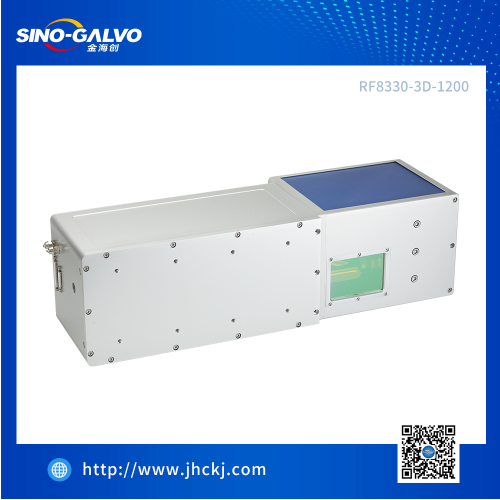

RF8330-3D-1200 Dynamic Focusing Scanning System

■ Adopting advanced optical design scheme, it features low light loss, small size, high
positioning accuracy, fast marking speed, strong anti-interference ability, etc. It is suitable
for various laser fine processing such as large format, complex curved surface, and deep
carving.
■ Adopt MM3D software system, support multiple file formats and import vector graphics,
bitmaps and text barcodes, easy to understand, strong operation affinity, easy to use.
■ The maximum marking format supports 1200×1200mm, and any format from 300×
300mm to 1200×1200mm can be customized according to the needs.
■ Water-cooled structure is adopted to effectively control the working temperature of the
galvanometer.
■ Precise load design for the 30mm spot lens, high motor assembly precision, reasonable
structure, small static friction coefficient and zero offset, ensuring good dynamic
characteristics of the system.
■ The driver has the position and speed advanced detection function, which greatly
improves the dynamic response performance and scanning speed of the whole system

---
