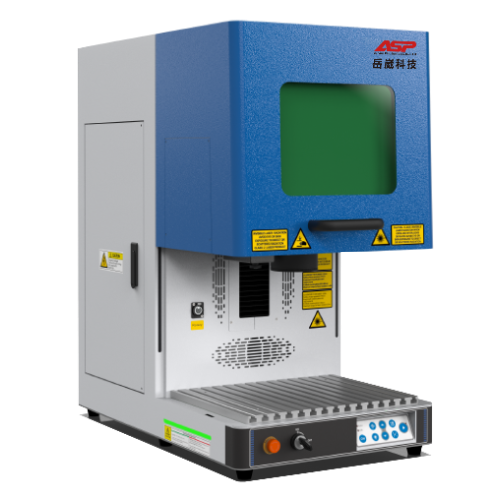

ASP-LASER Marking Series – Advanced Laser Marking System for Precision & Speed
The outstanding performance of ASP-LASER Marking Machines stems from a combination of premium components—including top-tier laser sources, advanced galvanometer (galvo) systems, and F-Theta scanning lenses. Designed for high-speed and high-precision processing, especially on metals, the system excels at flat, curved, and even 360° rotary marking, delivering unparalleled versatility.
● Galvo System
Built with precision dual-axis mirrors, the galvo system rapidly and accurately directs the laser beam path—crucial for achieving fast and precise metal marking.
Maximum marking speed: up to 10,000 mm/s.
● F-Theta Scanning Lens (Field Lens)
Expands the marking area significantly, supporting various lens options including 110×110mm, 150×150mm, and 200×200mm, so you can choose the right field size for your specific application.
● Two Major Laser Sources – Fiber & UV
Fiber Laser: Ideal for most metal materials, offering deep, permanent marking.
UV Laser: Suitable for engineering plastics, metals, and organic materials, providing fine, low-heat marking results.
Premium Mechanical & Safety Design
✅ Auto Focus with Laser Positioning:
Built-in red laser pointer enables fast and precise focus adjustments.
✅ Safety Enclosure with Interlock Switch:
If the safety window is opened during operation, the machine immediately stops—effectively preventing laser leakage and protecting the user’s eyes.
✅ Dust Filtration System:
Integrated air filtering within the safety cover prevents dust dispersion in the workspace.
✅ Dual-Control Start Buttons:
Requires two-button confirmation to activate, minimizing the risk of accidental operation.
✅ Safety Warning Light:
Do not touch the working area until the light turns green, ensuring operator awareness and safety.
✅ Emergency Stop Button:
In case of emergencies, the red stop button halts the laser operation instantly, ensuring user safety at all times.
【Specifications】
Model: Marking 8 / Marking 8 Pro
Laser Power:
• 20W (20–60 kHz)
• 50W (50–100 kHz)
• 20W MOPA (1–4000 kHz)
Optional F-Theta Lenses:
• 150 × 150 mm to 200 × 200 mm
Max Marking Speed:
• Up to 10,000 mm/s
Z-Axis:
• Motorized Z-Axis – 15.4″ / 390 mm
Cooling Method:
• Air-cooled
Weight:
• 72.5 kg
Product details:：https://asun-photonics.com/product/asp-laser-marking/
